Sapphire Watch Crystal Compatible with Rolex 114270 / 116000 / 116520 – Ø 30.4mm T 2.0mm – with Gasket H 2.5mm

Flat Sapphire Crystal for Rolex Explorer 114270 and Daytona 116520

Compatibility

This flat sapphire crystal with a 2.5mm gasket is compatible with the following Rolex case references:

• Rolex Explorer I 114270
• Rolex Oyster Perpetual 36 116000
• Rolex Cosmograph Daytona 116520

It matches the Rolex format 25-295 Tropical, without a date magnifier.

Warning: This kit is not intended for the Rolex Explorer I 14270, which uses a crystal gasket with a height of 2.30 mm.

Crystal Dimensions

• Outer diameter: 30.40 mm
• Lower shoulder diameter: 29.50 mm
• Crystal thickness alone: 2.00 mm
• Total diameter with mounted gasket: 30.60 mm
• Supplied gasket height: 2.50 mm

Features

• Crystal type: 25-295
• Profile: flat flush
• Material: sapphire crystal
• Date magnifier: no magnifier
• Gasket supplied: yes
• Gasket height: 2.50 mm

Measurement Information

The 30.40 mm diameter corresponds to the outer diameter of the upper part of the crystal.

The 29.50 mm diameter corresponds to the machined lower shoulder, also called the step. This part fits into the gasket and the case opening.

The 2.00 mm thickness corresponds to the height of the crystal alone, without the gasket.

The 30.60 mm diameter corresponds to the total diameter of the assembly when the gasket is installed around the crystal.

The supplied gasket has a height of 2.50 mm. The gasket height is important because several Rolex watches may use a 25-295 diameter crystal while requiring a gasket of a different height.

Description

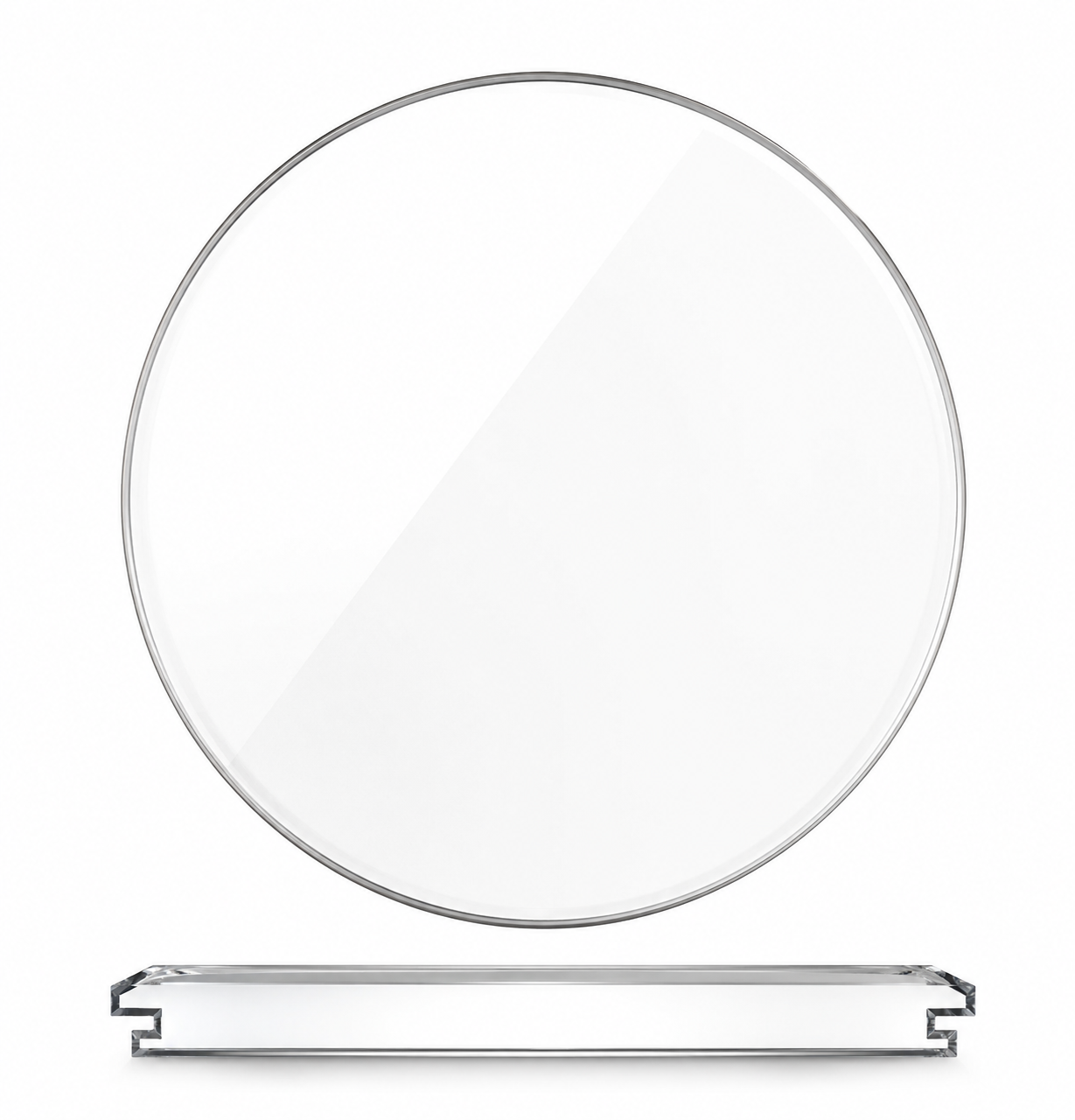

Replacement flat sapphire crystal with machined lower shoulder, intended for the Rolex Explorer I 114270 and the Rolex Cosmograph Daytona 116520.

This crystal without a magnifier has an outer diameter of 30.40 mm, a lower shoulder of 29.50 mm, and a thickness of 2.00 mm. It comes with a crystal gasket with a height of 2.50 mm.

Replacement should be carried out with appropriate tools. After mounting, the crystal's position must be checked, and a water resistance test must be performed.
