Sapphire Watch Crystal Compatible with Rolex 14270 – Ø 30.4mm T 1.8mm – with Gasket H 2.3mm

Flat Sapphire Crystal for Rolex Explorer I 14270 with 2.30 mm Gasket

Compatibility

This replacement flat sapphire crystal is compatible with the following Rolex case reference:

• Rolex Explorer I 14270

It corresponds to the Rolex 25-295 format, without date magnifier.

Crystal Dimensions

• Outer diameter of crystal: 30.40 mm
• Lower shoulder diameter: 29.50 mm
• Crystal thickness alone: 1.80 mm
• Total diameter with gasket mounted: 30.60 mm
• Gasket height supplied: 2.30 mm

Features

• Crystal type: 25-295
• Profile: flat flush
• Material: sapphire crystal
• Date magnifier: without magnifier
• Gasket supplied: yes
• Gasket height: 2.30 mm

Measurement Information

The 30.4mm diameter corresponds to the outer diameter of the upper part of the crystal.

The 29.5mm diameter corresponds to the machined lower shoulder, also called the step. This part fits into the gasket and the case opening.

The 1.80 mm thickness corresponds to the height of the crystal alone, without the gasket.

The 30.60 mm diameter corresponds to the total diameter of the assembly when the gasket is installed around the crystal.

The supplied gasket has a height of 2.30 mm and is specifically sized for mounting this crystal on the Rolex Explorer I 14270.

Description

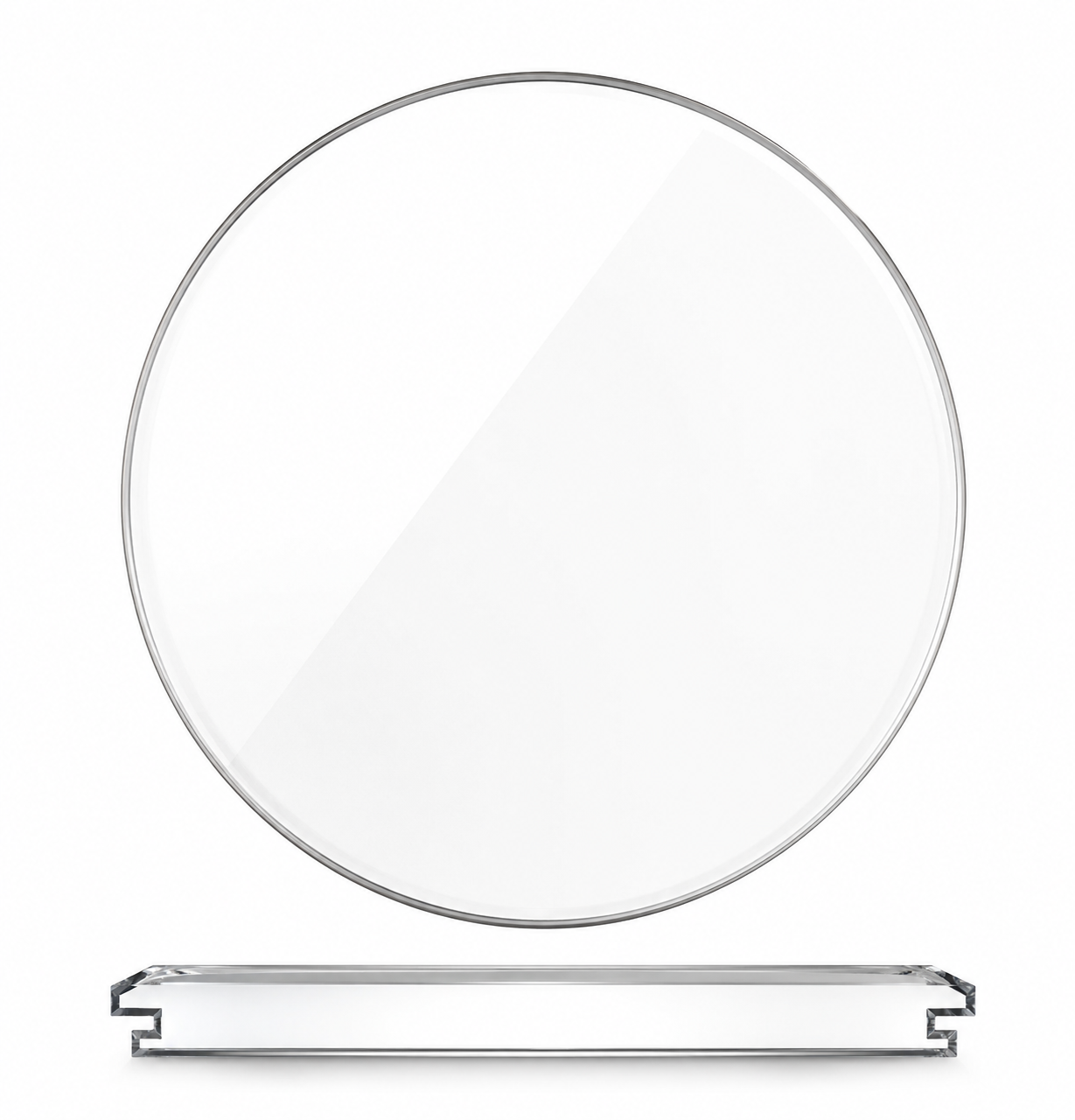

Flat sapphire replacement crystal with machined lower shoulder, intended for the Rolex Explorer I 14270.

This crystal without magnifier has an outer diameter of 30.40 mm, a lower shoulder of 29.50 mm, and a thickness of 1.80 mm. It comes with a crystal gasket with a height of 2.30 mm.

This version differs from crystals intended for Rolex references 114270, 116000, and 116520, which use a thicker crystal and a gasket of a different height.

Replacement must be carried out with appropriate tools. After mounting, the crystal's position must be checked, and a water resistance test must be performed.
